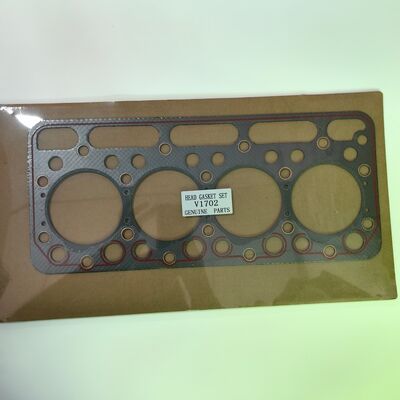

15263-03310 Composite Cylinder Head Gasket For Kubota V1702 4-Cylinder Diesel Engine

• OEM Part Number: 15263-03310
• Cross Reference PN: 15263-03311, 15263-03312
• Fit Engine: Kubota V1702, V1702-B four-cylinder vertical water-cooled diesel engine
• Product Name: Composite Copper Ring Reinforced Cylinder Head Gasket
• Structure: Fiber composite base with copper fire ring around each cylinder bore
• Application: Kubota L2850 tractor, industrial forklift, stationary generator set, water pump unit, small loader and agricultural equipment
• Material: High temperature resistant compressed graphite composite + copper reinforcing rings, oil & coolant resistant

1. Exact OEM die cutting, perfectly matches all bolt holes, water jacket ports, oil return holes and intake/exhaust passages of V1702 engine, direct bolt-on installation.
2. Copper ring reinforcement on cylinder holes greatly improves burst resistance, effectively prevents gas blow-by, coolant leakage and oil-water emulsification under long-term heavy load operation.
3. Durable fiber composite material features good heat insulation and compression resilience, stable sealing performance in high-temperature working conditions, reduces engine repair frequency.
4. Independent spare part for V1702 full overhaul gasket kit, can be matched with valve stem seals, crankshaft oil seals and injector O-rings for complete top-end engine rebuild.

This V1702 cylinder head gasket is the core sealing component sandwiched between cylinder head and cylinder block of Kubota four-cylinder diesel engine. It isolates four combustion chambers, cooling circulation system and engine lubrication system to avoid cross leakage of high-pressure gas, antifreeze and engine oil. It eliminates typical faults such as engine overheating, power decline, white exhaust smoke, difficult cold start and oil dilution, and must be replaced during cylinder head disassembly and major maintenance.

We supply parts for Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vo lvo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB etc.

A: Mainly used on Kubota L2850 farm tractors, FD series forklifts, fixed diesel generators, irrigation water pumps and light construction machinery.

A: Persistent engine overheating, bubbles in radiator expansion tank, milky emulsified engine oil, white smoke from exhaust outlet, low cylinder compression pressure, rising fuel consumption and hard starting.

A: Recommended to replace complete V1702 overhaul gasket set, valve stem oil seals, front and rear crankshaft oil seals, fuel injector sealing O-rings and new cylinder head bolts synchronously.
