1. Product Overview
This Mitsubishi K4E full engine overhaul kit is custom-produced for Mitsubishi K4E and K4E-DI inline 4-cylinder water-cooled diesel engines. It is a special matching kit for in-depth maintenance of micro-construction machinery and agricultural equipment engines. Manufactured in strict accordance with OEM dimensional tolerances and assembly standards, the kit perfectly resolves common engine faults including oil burning, insufficient cylinder pressure, power attenuation, oil-water and air leakage, and seal seepage, achieving full performance restoration of the engine.
This product is compatible withMitsubishi MT23D tractors, Hanix N260/N350 mini excavators, small loaders, and mobile generator sets equipped with K4E power systems. It is available in two specifications: full gasket set and complete overhaul kit (cylinder kit + bearing set + valve components + full gaskets), meeting diverse maintenance scenario requirements.
2. Core OEM Part Numbers
1. Full engine gasket assembly: MM431630
2. STD piston ring assembly: MM431632
3. STD standard piston: 30A17-00050
4. Complete OEM overhaul kit code: K4EOHK
5. All core individual gaskets, bearings and valve parts adopt exclusive K4E OEM numbers, not interchangeable with any K3 series, K4A/K4B/K4C/K4M/K4N engine models.
3. Standard Kit Contents
3.1 Full Gasket Set (For Cylinder Head Repair & Leakage Fix)

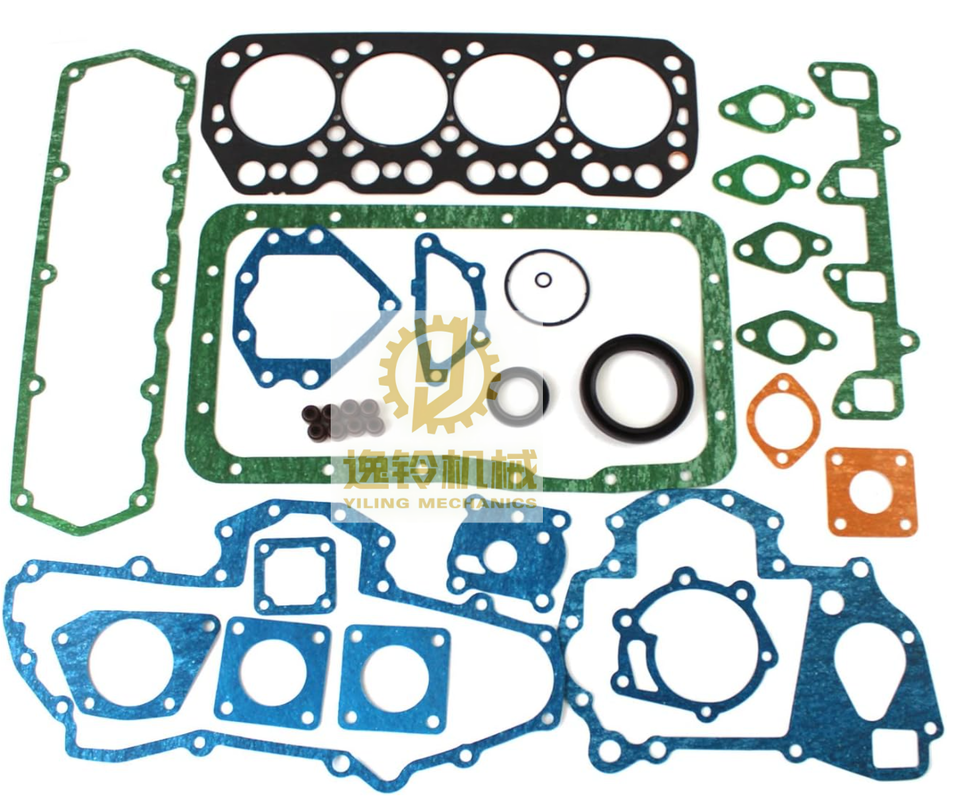

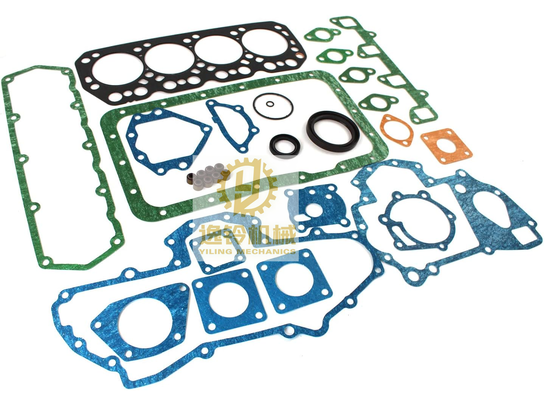

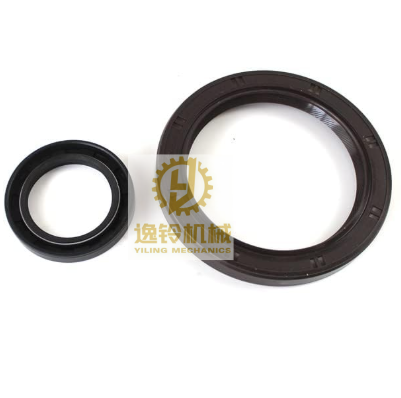

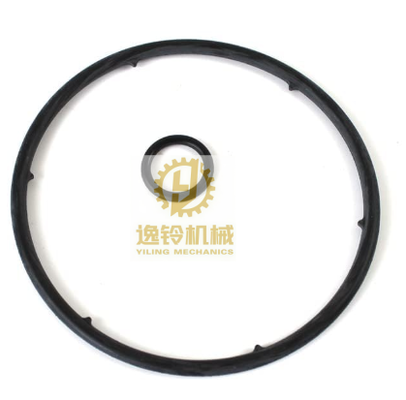

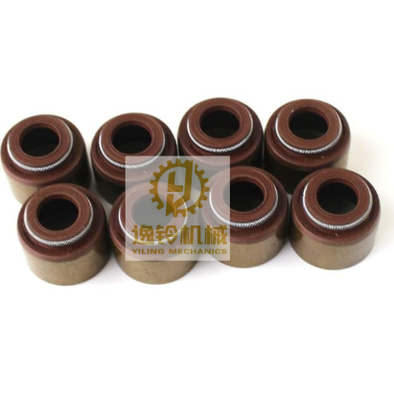

Includes: MLS multi-layer metal cylinder head gasket, valve cover gasket, oil pan gasket, intake & exhaust manifold gaskets, timing cover gasket, oil cooler gasket, front & rear crankshaft oil seals, 8pcs dedicated valve oil seals, injector sealing gaskets and other full sealing parts, covering all engine sealing positions.
3.2 Complete Overhaul Kit (For Full Engine Disassembly & Overhaul)
Based on the full gasket and oil seal set, it additionally contains: 4 sets of STD standard pistons, 4 sets of dedicated piston rings, 4 wet cylinder liners, piston pins, connecting rod bushings, complete main bearings, connecting rod bearings, crankshaft thrust washers, intake & exhaust valves, valve guides, valve seats and all wearable moving parts. One-stop complete configuration requires no additional parts purchase.
4. Core Product Parameters & Material Advantages
1. Engine bore specification: 72mm exclusive bore, standard piston ring size 72×2.5/2.5/2.5/4.0 with precise zero-deviation dimensions;

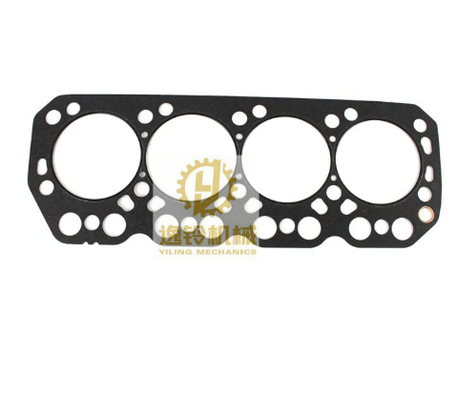

2. The cylinder head gasket adopts multi-layer metal high-temperature and high-pressure resistant material, eliminating gasket blowout, water and air leakage under long-term continuous operation;
3. All oil seals are made of oil-resistant and aging-resistant fluorine rubber, adapting to alternating high and low temperature working conditions with no deformation or oil seepage;
4. Pistons, piston rings and bearings adopt high-strength wear-resistant alloy material, reducing engine operating wear and extending overall service life;
5. All paper gaskets use asbestos-free eco-friendly material with stable sealing performance and full compliance with OEM assembly standards.
5. Compatible Models & Strict Interchangeability Restrictions
Compatible Engines & Equipment:Full series of Mitsubishi K4E / K4E-DI naturally aspirated diesel engines, matching MT23D agricultural tractors, Hanix N260/N350 mini excavators, small construction loaders and diesel generator sets.
Strictly Non-Interchangeable Models (Critical Note):
This kit is designed for the K4E exclusive 72mm bore. Strictly prohibit mixing with K4A(65mm), K4B(68mm), K4C(70mm), K4M(76mm), K4N(84mm) and all 3-cylinder K-series engines. Mismatched dimensions, ring groove specifications and compression ratio will directly cause cylinder scoring, severe oil burning, insufficient cylinder pressure and permanent engine damage.
6. Standard Installation & Operation Specifications
1. Before installation, thoroughly clean the engine block, cylinder head, oil galleries and water channels to remove carbon deposits, old gasket residues and metal debris, ensuring flat and clean assembly surfaces;
2. All gaskets and oil seals must be installed dry and dust-free. Do not apply excessive sealant to avoid oil gallery blockage and sealing failure;
3. Cylinder head bolts and bearing cap bolts must be tightened in full compliance with OEM torque sequence and standards. Violent or uneven tightening will cause gasket deformation and gas leakage;
4. Install piston rings with correct orientation and ring gap spacing, and arrange ring gaps in staggered positions as standard to prevent blow-by and oil burning;
5. After overhaul completion, run the engine at idle speed for more than 20 minutes for break-in. Do not operate under full load within the first 5 working hours. Replace engine oil and oil filter after 50 working hours to complete full engine running-in.
7. Product Advantages & After-Sales Warranty
1. 100% OEM dimensional replacement, no drilling, grinding or modification required for direct plug-and-play installation;
2. Fully integrated configuration eliminates the trouble of purchasing scattered parts separately, greatly shortening maintenance cycle;
3. Optimized for harsh working conditions of agricultural and small construction equipment with excellent dustproof, high-temperature resistant and anti-fatigue performance;
4. 12-month warranty under normal working conditions. Damage caused by improper installation, overload operation, oil shortage or water shortage is excluded from warranty coverage;
5. Available sizes: STD standard size, +0.25mm oversize, +0.50mm oversize to meet different engine repair and boring demands.
