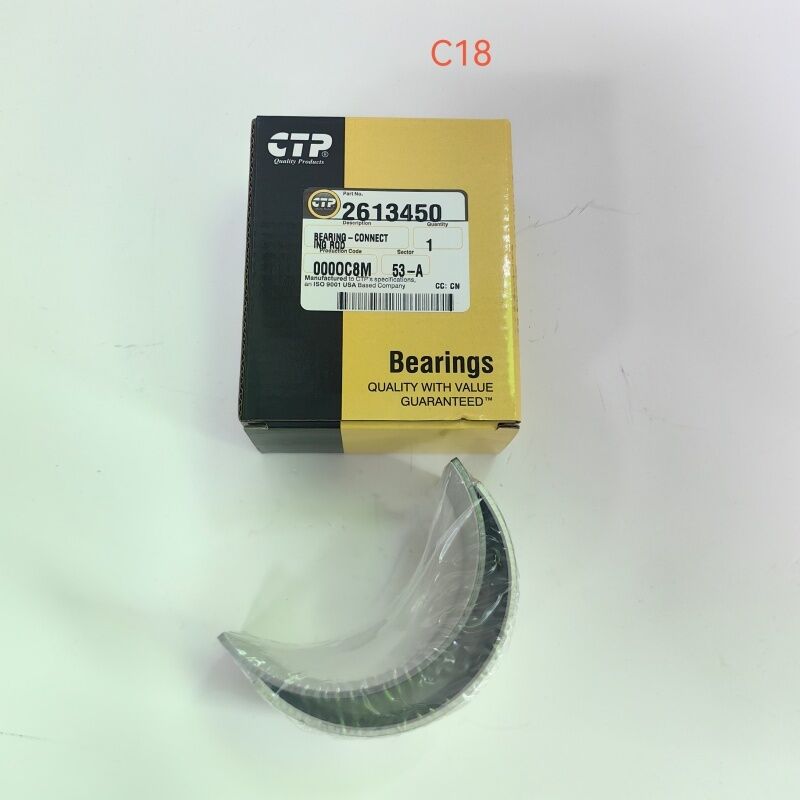

CTP 2613450 Connecting Rod Bearing For CAT C18 Diesel Engine

• Product Name: Connecting Rod Bearing / Conrod Bearing Shell
• Brand: CTP
• Part Number: 2613450
• Description: BEARING-CONNECTING ROD
• Compatible Engine: CAT C18 Industrial & Construction Diesel Engine
• Material: Bimetallic aluminum alloy bearing layer with steel backing
• Unit Quantity: 1 piece per box

1. High load-bearing bimetallic structure, excellent wear resistance and anti-friction performance under high engine pressure
2. Precise curvature and oil groove design, stable lubrication film formation to avoid dry friction
3. Matches OEM dimensional standard, direct press fit into connecting rod big end without machining
4. Critical wear component for C18 engine rebuild, replace together with crankshaft, piston kit and thrust bearings

CTP 2613450 connecting rod bearing is installed between the crankshaft crank pin and the big end of the connecting rod. It reduces rotational friction, bears explosive load from cylinder combustion, and protects the crankshaft journal from abrasion.

When engine has abnormal knocking, low oil pressure or crankshaft journal wear during overhaul, this rod bearing must be fully replaced as a complete set to ensure engine long-term reliable operation.

We supply parts for Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vo lvo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB etc.

1. Which engine does 2613450 rod bearing fit?

   It is designed exclusively for CAT C18 heavy-duty diesel engine.

2. What’s the main function of connecting rod bearing?

   It forms a hydrodynamic lubrication layer between crank pin and conrod, minimize metal-to-metal friction and protect crankshaft from damage.

3. Can I replace only one single bearing?

   Not recommended. All rod bearings and main bearings should be replaced as a full set during major engine overhaul for balanced clearance.

4. What material is this bearing made of?

   Steel base with aluminum alloy anti-wear lining, durable for high temperature and heavy load working conditions.
