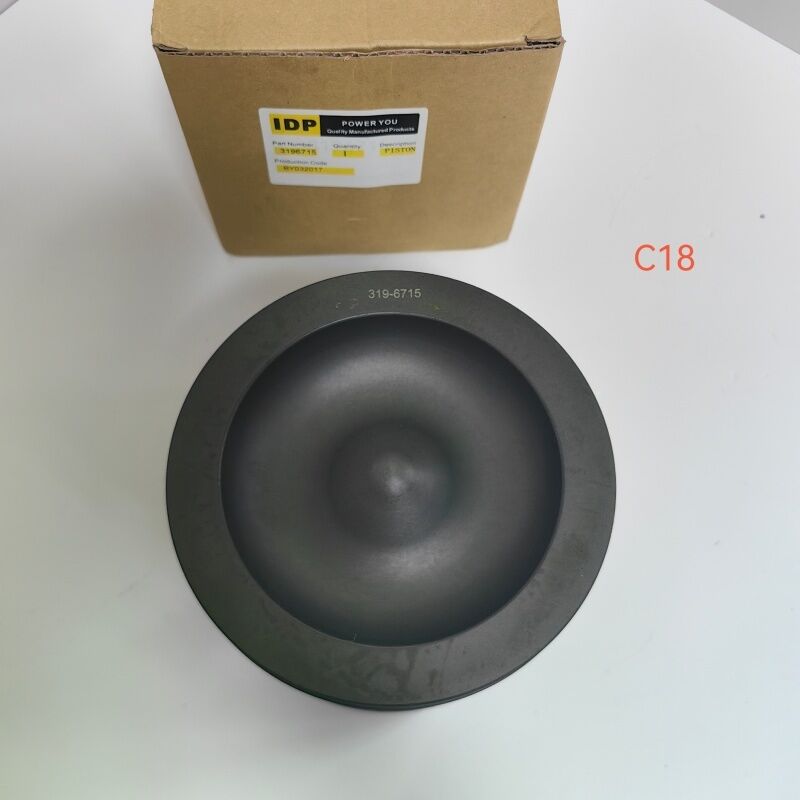

IDP 319-6715 Engine Piston Fits CAT C18 Diesel Engine Overhaul Replacement Part

• Product Name: CAT C18 Engine Piston
• IDP Part Number: 3196715
• Genuine CAT OEM Reference: 319-6715
• Applicable Engine: CAT C18 Diesel Engine
• Compatible Equipment: CAT 988H Wheel Loader, 770/772 Off-Highway Truck, C18 Generator Set, Large Mining Construction Machinery
• Brand: IDP Aftermarket Replacement Parts
• Structure Feature: Deep concave combustion chamber, double copper pin bushings, 3 piston ring grooves, anti-wear black coated surface
• Core Features

1. High-strength forged steel composite piston body, strong resistance to high temperature, high pressure and mechanical impact under C18 heavy load working conditions
2. Integrated precision deep combustion bowl, optimize fuel atomization and combustion efficiency, reduce fuel consumption and exhaust emissions
3. Two built-in solid copper pin bushings, effectively reduce friction between piston wrist pin and piston body, extend service life
4. Three standard ring grooves for matching C18 dedicated piston rings, perfect dimensional consistency with original 319-6715 for direct bolt-on installation

IDP 3196715 piston is the core power component of CAT C18 large displacement heavy-duty diesel engine. It converts fuel combustion pressure into mechanical driving force through reciprocating movement inside the cylinder liner.

Piston ablation, crack, bushing wear or ring groove deformation will lead to engine power drop, oil burning, abnormal knocking and cylinder pulling failure. It is generally replaced together with piston rings, cylinder liner, connecting rod bearing and crankshaft bearing during complete engine overhaul.

We supply parts for Kubota, Cummi ns, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vo lvo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB etc.

1. What is the original CAT OEM number for this C18 piston?

   IDP 3196715 directly replaces CAT official OEM part 319-6715.

2. What is the advantage of double copper bushings on this piston?

   Double copper bushings greatly improve wear resistance of the pin hole, avoid pin hole oval deformation under long-term heavy load, suitable for C18 high-power harsh working environment.

3. Which CAT machines use C18 engine with this piston?

   CAT 988H wheel loader, 770,772 rigid dump trucks, stationary C18 generator sets and large mining equipment.

4. What accessories need to be replaced together with the piston?

   Suggest full overhaul kit: matching C18 piston rings, wrist pins, circlips, cylinder liners, main bearings and conrod bearings.
