Product Details

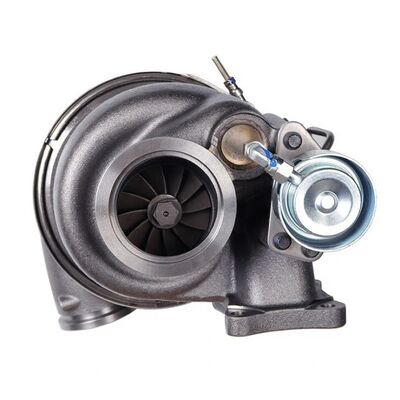

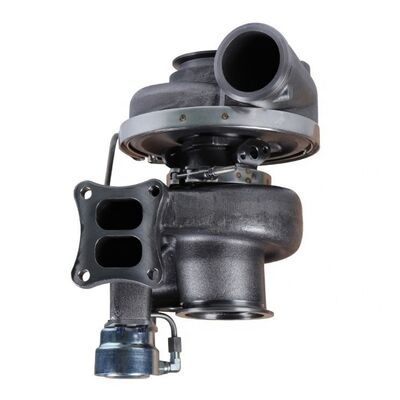

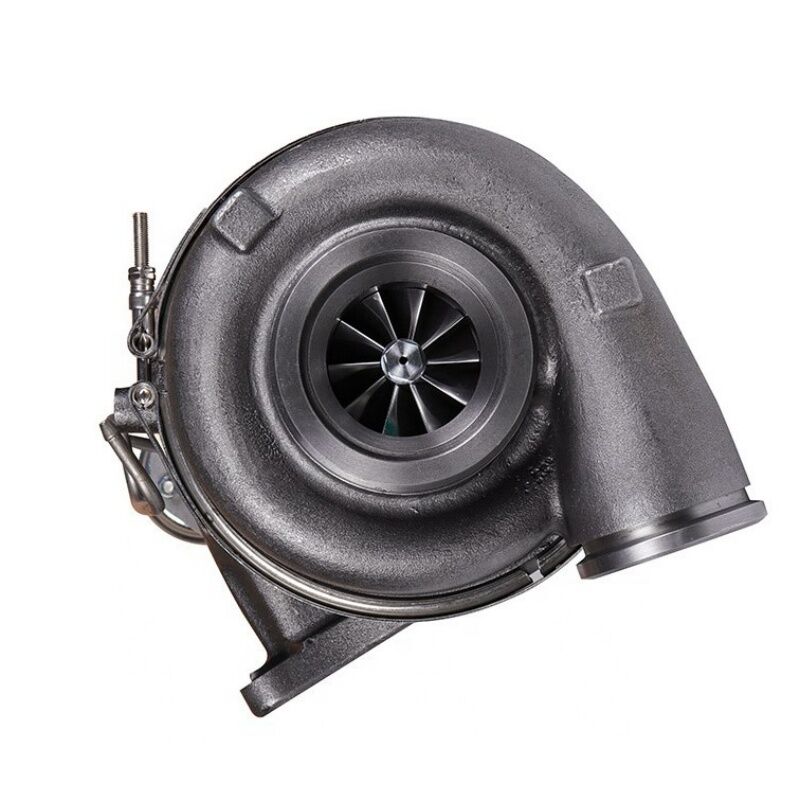

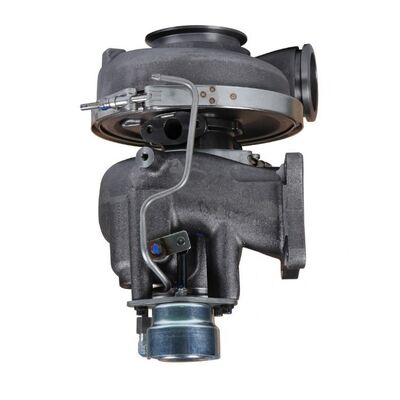

Name: GTA4088BS Turbocharger
Model: GTA4088BS
Part No: 10R8733, 10R2862, 752538-5013S, 751211-0001
Turbo Type: Garrett GTA4088BS Low Pressure Wastegate Turbo
Bearing: Floating Bearing
Feature: Twin Volute Turbine Housing, External Vacuum Wastegate, Low Pressure Stage Two-Stage Turbo
Application: CAT C13 diesel engine, Cat heavy truck, industrial generator, construction machinery
Application Scenarios
- CAT vehicles & equipment equipped with C13 two-stage turbo engine
- Heavy construction machinery C13 engine overhaul maintenance
- Mining transport trucks powered by Cat C13 diesel engine
Cross Reference
| Spec |
Turbo Type |
Application |
Interchangeable |
| GTA4088BS 752538-5013S |
Low pressure GTA4088BS turbo |
C13 Two-Stage Engine Low Pressure Side |
Yes |
| GTA4088 High Pressure Turbo |
High pressure stage, different housing & flange |
Incompatible |
No |
| GT4088 Fixed Wastegate Turbo |
Single turbo version, not suitable for two-stage layout |
Incompatible |
No |
Product Advantages
- Heavy-duty reinforced floating bearing assembly, stable for long-hour continuous heavy load operation
- Twin volute turbine housing optimizes exhaust pulse energy, improves low-speed response for two-stage turbo layout
- High temperature resistant cast turbine housing, withstands sustained high exhaust temperature
- OEM matching mounting dimensions for direct bolt-on replacement
- Strict dynamic balance high-speed testing before shipment
- Cost-effective aftermarket replacement low-pressure turbocharger
Packaging & Shipping
Pre-filled with anti-rust lubricant; inlet/outlet sealed, foam protected and packed in export cartons. Wooden cases available for bulk orders.
Delivery: SF Express / YTO / ZTO / EMS
Taxes
Import duties and consumption tax not included in price. Buyer bears local customs charges.
Warranty
6-month standard warranty. Failures caused by improper installation, insufficient lubrication or misuse are not covered.
Product Range
We supply parts for Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi,Hino, Nissan, Vo lvo, Deutz, Doosan, John Dee re, Scania , Hyundai , JCB etc.
Main items: turbochargers, turbo housings, wheel assemblies, turbo CHRA core, gasket kits and other repair spare parts.
FAQ
Q1: What equipment & engine matches GTA4088BS 752538-5013S turbocharger?
A: Fits CAT C13 two-stage turbo diesel engine, this is the low pressure stage turbo for Cat heavy trucks and construction machinery.
Q2: Can high-pressure turbo replace this low-pressure GTA4088BS unit?
A: Cannot interchange directly. The flow housing, flange layout and boost calibration are different for high/low pressure stages.
Q3: Warranty term?
A: 6 months. Damage caused by improper installation, insufficient lubrication or misuse is excluded.
Q4: How to confirm compatibility?
A: Provide equipment model, engine serial number and original turbo photos for verification.
