Product Details

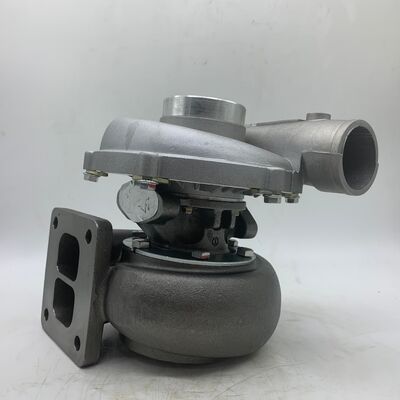

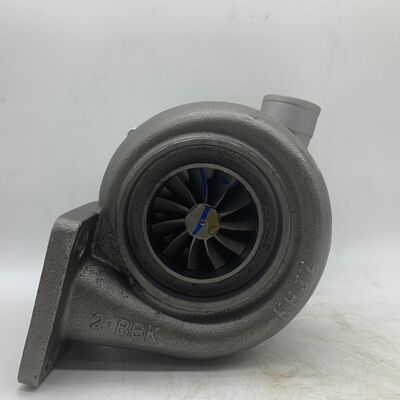

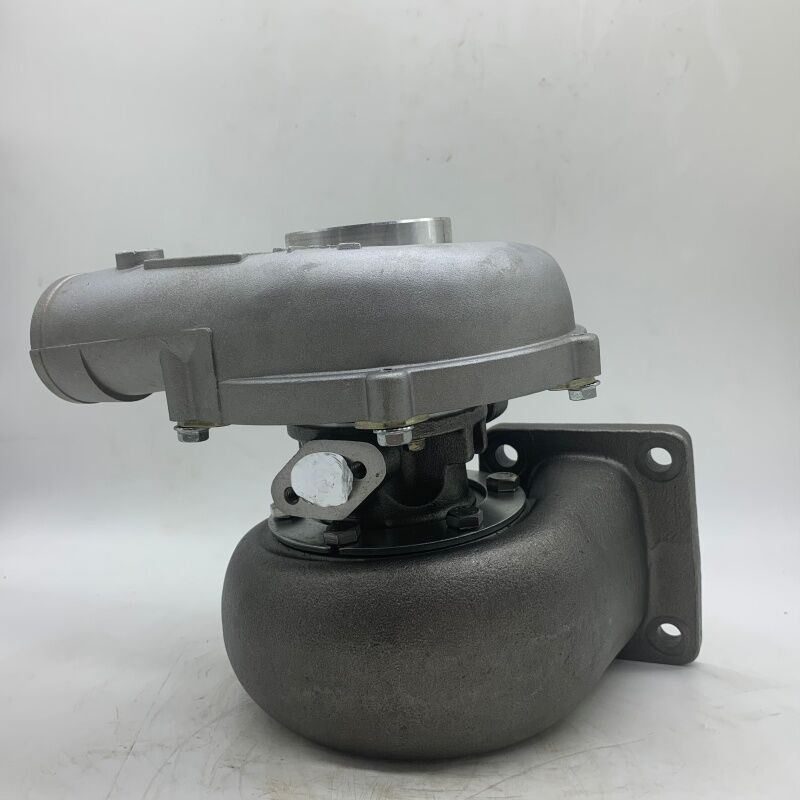

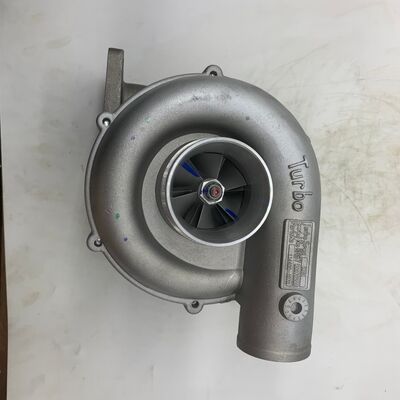

Name: S280 Turbocharger
Model: S280
Part No: 114400-1070
Turbo Type: IHI S280
Bearing: Floating Bearing
Feature: Fixed Geometry Twin Volute
Application: Isuzu 6SD1 engine, Hitachi EX300-2, EX300-3 excavator
Application Scenarios
- Hitachi EX300-2 excavator
- Hitachi EX300-3 excavator
- Construction machinery equipped with Isuzu 6SD1 diesel engine overhaul
Cross Reference
| Spec |
Turbo Type |
Application |
Interchangeable |
| S280 114400-1070 |
Fixed geometry turbo |
Hitachi EX300-2 / EX300-3, Isuzu 6SD1 |
Yes |
| S2B Turbo |
Smaller airflow, different housing |
Incompatible |
No |
| S300 Turbo |
Larger overall dimension, different flange |
Incompatible |
No |
Product Advantages
- Heavy-duty floating bearing assembly, stable under continuous heavy-load construction operation
- High temperature resistant cast turbine housing, adapts harsh construction site environments
- Standard twin volute exhaust flange for direct OEM replacement
- Strict dynamic balance testing before shipment
- Cost-effective replacement for original turbocharger
Packaging & Shipping
Pre-filled with anti-rust lubricant; inlet/outlet sealed, foam protected and packed in export cartons. Wooden cases available for bulk orders.
Delivery: SF Express / YTO / ZTO / EMS
Taxes
Import duties and consumption tax not included in price. Buyer bears local customs charges.
Warranty
6-month standard warranty. Failures caused by improper installation, insufficient lubrication or misuse are not covered.
Product Range
We supply parts for Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi,Hino, Nissan, Vol vo, Deutz, Doosan, John De ere, Scania , Hyundai , JCB etc.
Main items: turbochargers, turbo housings, wheel assemblies, gasket kits and other repair spare parts.
FAQ
Q1: What equipment matches S280 114400-1070 turbocharger?
A: Fits Hitachi EX300-2, EX300-3 excavator with Isuzu 6SD1 diesel engine.
Q2: Can S2B turbo replace this S280 turbo?
A: Flange dimensions and internal airflow parameters differ, cannot be directly interchanged.
Q3: Warranty term?
A: 6 months. Damage from improper installation, insufficient lubrication is excluded.
Q4: How to confirm compatibility?
A: Provide machine model, engine model and original turbo photos for verification.
