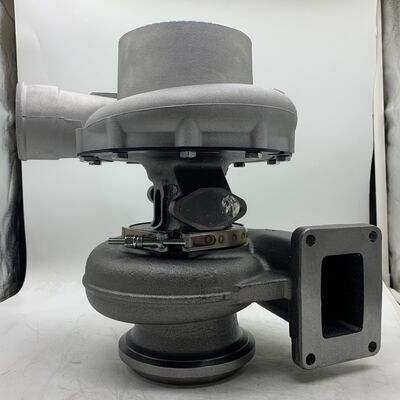

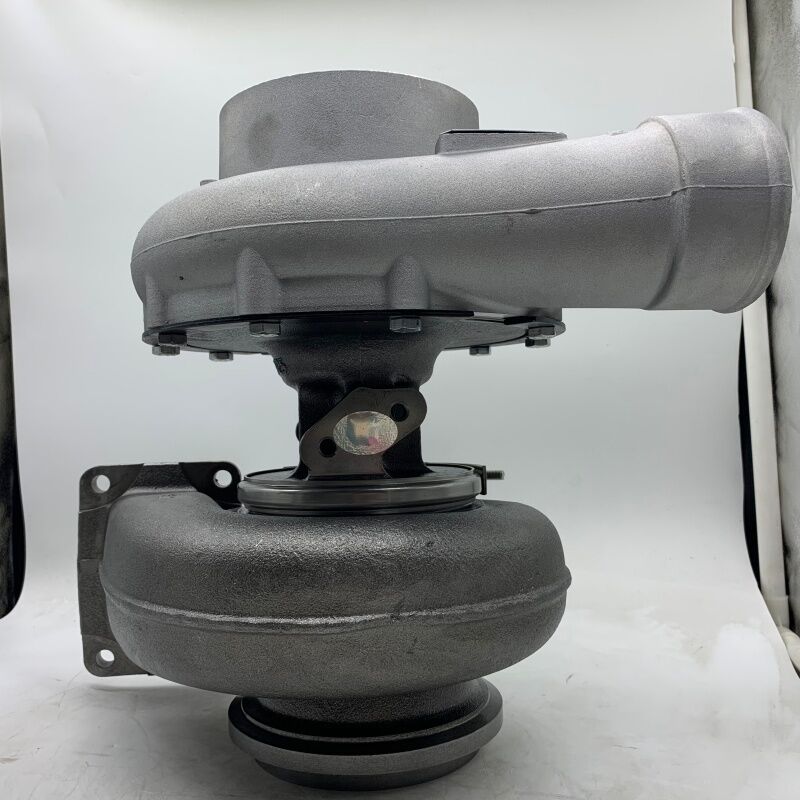

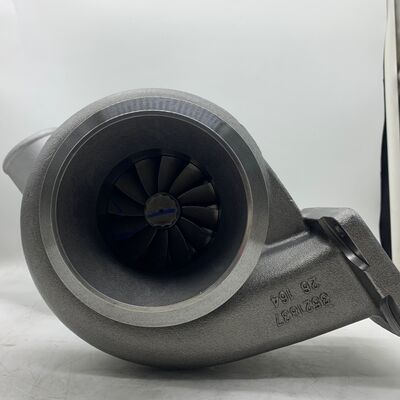

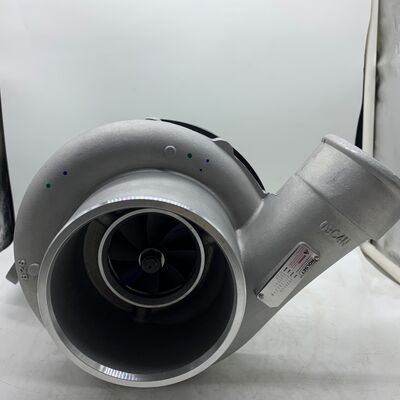

Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine

Certification
China Guangzhou Tianhe District Qianjin Yiling Machinery Parts Business Department certification
I'm Online Chat Now

Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine

Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine
Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine

Large Image :  Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine

Product Details:
Place of Origin: CHINA
Model Number: HT3B Single
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: BOX
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 8500
Contact Now Chat Now

Turbocharger HT3B Single Volute Turbo For Heavy Duty Cumm ins Diesel Engine

Description
Highlight:

HT3B turbocharger for cummin s engine

,

Single volute turbocharger heavy duty

,

cummin s diesel engine turbocharger HT3B

Product Details
Name: HT3B Single Volute Turbocharger
Model: HT3B
Structure: Single Volute
Bearing: Floating Bearing
Application: Heavy-duty Cumm ins diesel engine, mining equipment, generator set, marine engine
Application Scenarios
  1. Large mining machinery & heavy construction equipment
  2. Marine diesel engines
  3. Stationary industrial generator sets
  4. Heavy-duty commercial vehicle engine overhaul
Cross Reference
Spec Turbo Type Application Interchangeable
HT3B Single Volute Single volute fixed geometry turbo Large displacement Cumm ins diesel engine Yes
HT3B Twin Volute Twin volute housing Different exhaust layout, incompatible No
HC5A / H1E Series Larger frame turbo Higher power range, incompatible No
Product Advantages
  1. Single volute structure, mature and reliable for traditional mechanical diesel engines
  2. Heavy-duty floating bearing assembly, withstand long-duration high-load operation
  3. High-temperature resistant cast turbine housing, suitable for harsh working conditions
  4. Complete assembly, direct replacement for original turbocharger
  5. Strict dynamic balance inspection before delivery
Packaging & Shipping

Pre-filled with anti-rust lubricant; inlet/outlet sealed, foam protected and packed in export cartons. Wooden cases available for bulk orders.

Delivery: SF Express / YTO / ZTO / EMS

Taxes

Import duties and consumption tax not included in price. Buyer bears local customs charges.

Warranty

6-month standard warranty. Failures caused by improper installation, insufficient lubrication or misuse are not covered.

Product Range

We supply parts for Kubota, cummin ss, CAT , Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi,Hino, Nissan, Vol voo, Deutz, Doosan, Daewoo, John Dee ree, Scania , Hino, Hyundai , JCB etc.

Main items: turbochargers, turbo housings, wheel assemblies, gasket kits and other repair spare parts.

FAQ
Q1: What is the feature of this HT3B turbo?
A: Single volute exhaust structure, widely matched with classic large-displacement Cumm ins mechanical diesel engines.
Q2: Can twin volute HT3B replace this single volute version?
A: No, exhaust flange and airflow layout differ, cannot be interchanged.
Q3: Warranty term?
A: 6 months. Damage from improper installation is excluded.
Q4: How to confirm compatibility?
A: Provide engine model, OEM part number and photos of original turbo for verification.
