Product Details

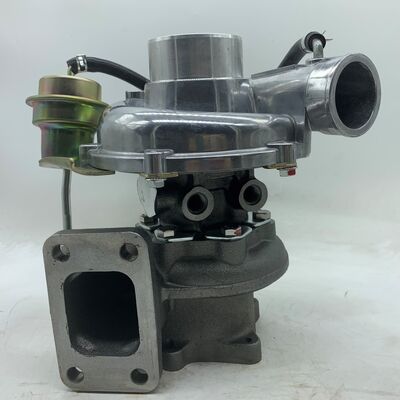

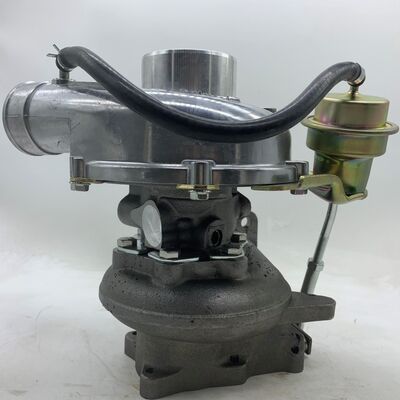

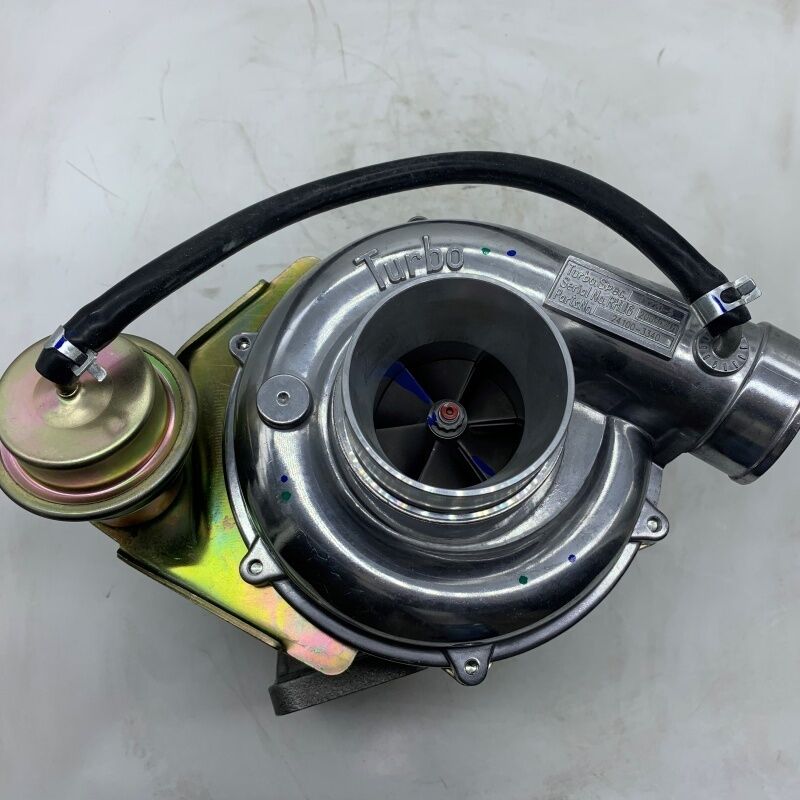

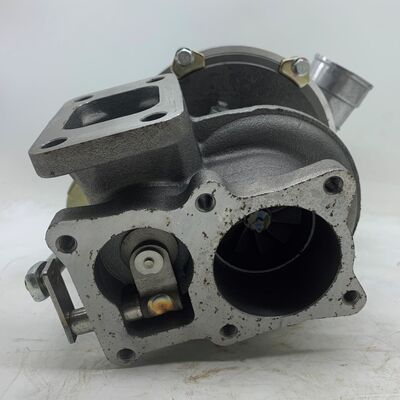

Product Name: RHC6 Water-cooled Turbocharger
Fit Engine: Isuzu 6BD1T Diesel Engine
Compatible Equipment: Hitachi EX220-5 Hydraulic Excavator (Water-cooled version)
Application Scenarios
- Hitachi EX220-5 hydraulic excavators with water-cooled turbo configuration
- Medium construction machinery equipped with Isuzu 6BD1T power unit
- Industrial diesel generator sets using 6BD1T engine
Cross Reference Table
| OEM Part Number |
Turbo Spec |
Matching Equipment |
Interchangeable |
| RHC6 Water-cooled |
RHC6 Wastegate Turbo, Water cooling port |
Hitachi EX220-5 / Isuzu 6BD1T |
Yes |
| 114400-2720 (Air-cooled) |
RHC6 Air-cooled Turbo |
EX220-5 6BD1, no water passage, not interchangeable |
No |
| 114400-4441 |
TD08H Turbo |
Hitachi EX470 6WG1 engine, incompatible |
No |
| 3591077 |
HX40W Turbo |
Vol vo EC360, incompatible |
No |
Core Product Highlights
- High-temperature cast iron turbine housing, IHI RHC6 design matched for Isuzu 6BD1T engine
- Water cooling channel design + external pneumatic wastegate actuator, better heat dissipation, long service life under continuous heavy load
- Precision dynamically balanced rotor assembly, strong low-speed torque, effectively reduce black smoke during excavation work
- Combined water + oil lubrication cooling system, suppress bearing overheating, reduce oil carbonization and leakage risk
- Standard original mounting flange, direct bolt-on replacement, confirm water pipeline interface before installation
Shipping & Packaging
Each turbocharger is pre-filled with anti-rust lubricant, air inlet/outlet sealed by plastic dust caps, wrapped with shockproof foam and packed into thick export cartons. Reinforced wooden cases are available for bulk orders. Tracking number will be provided once dispatched, support SF Express / YTO / ZTO / EMS delivery.
Taxes
Import duties, consumption tax and customs clearance fees are not included in unit price and freight. Buyers shall bear all relevant customs charges in accordance with local import regulations.
Warranty
Standard 6-month warranty for all turbochargers. Damage caused by improper installation, engine overload, insufficient lubrication or improper engine oil is not covered under warranty.
Related Engine Parts Available
We supply a complete range of aftermarket engine spare parts covering Kubota, Cummi ns, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Volv o, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB and more. Our product lineup includes turbochargers, overhaul gasket kits, pistons, water pumps, oil pumps, fuel injectors, crankshafts and other wear parts for excavators, trucks, tractors and generators.
FAQ (5 Selected Concise Versions)
Q1: What brands of engine spare parts do you supply?
A: We supply parts for mainstream machinery engine brands including Kubota, Cumm ins, CAT, Yanmar, Isuzu, Komatsu, Mitsubishi, Vol vo, Deutz, Doosan, Scania, Hyundai, JCB.
Q2: Can this turbocharger directly replace original OEM parts?
A: Yes, all parts follow OEM dimensional standards, pass strict factory dynamic balance testing for direct bolt-on installation.
⚠️Important: This is water-cooled RHC6 turbo for Hitachi EX220-5 6BD1T engine, cannot interchange with air-cooled RHC6 version, check whether the old turbo has water cooling holes before ordering.
Q3: What is your product warranty period?
A: Standard 6-month warranty. Damage from improper use or installation is excluded.
Q4: What domestic delivery methods do you support?
A: We support SF Express, YTO, ZTO and EMS with real-time tracking service.
Q5: How to confirm the compatible turbo for your machine?
A: Provide engine model, OEM part number or clear photos of old turbo for accurate matching.
