Product Details

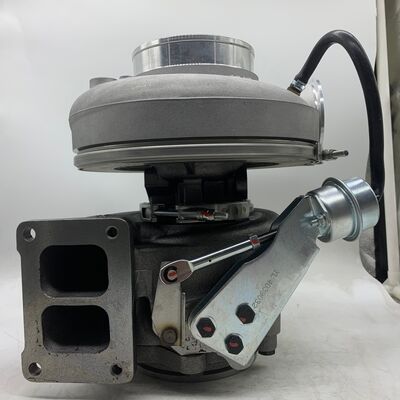

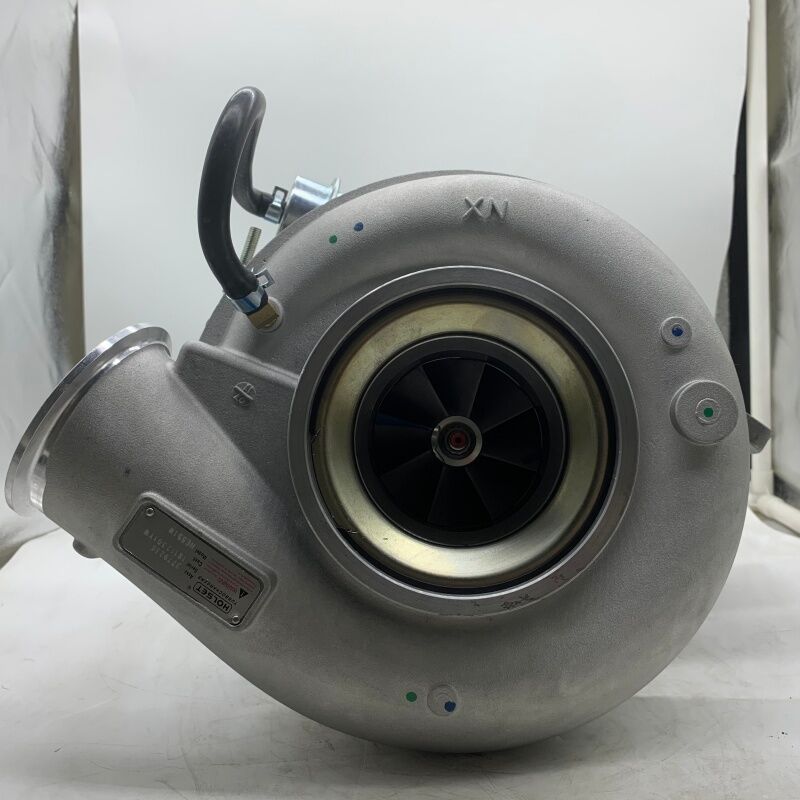

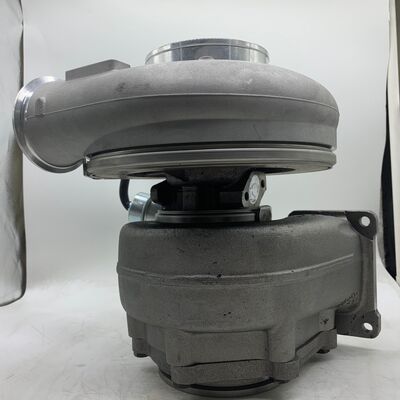

Product Name: HX60W Turbocharger (With Wastegate Actuator)
Fit Engine: Vol vo D16E 6-cylinder Diesel Engine
Compatible Equipment: Vol vo EC700 Hydraulic Excavator
Application Scenarios
- Vol vo EC700 hydraulic excavators equipped with D16E engine
- Super large heavy construction machinery powered by Vol vo D16E engine
- Heavy-duty industrial stationary diesel generator sets
Cross Reference Table
| OEM Part Number |
Turbo Spec |
Matching Equipment |
Interchangeable |
| HX60W Wastegate Type |
HX60W Turbo with external actuator |
Vol vo EC700 / D16E engine |
Yes |
| 4042659 |
HX60 Fixed Non-wastegate Turbo |
EC700 D16E engine, without actuator, not interchangeable |
No |
| VOE21076471 |
HX55 Turbo |
EC480 D13 engine, smaller size, incompatible |
No |
| 11030482 |
HX55 Turbo |
EC460 D12D engine, incompatible |
No |
Core Product Highlights
- High-temperature cast iron twin volute turbine housing, Holset HX60W design matched for Vol vo D16E engine
- Equipped with external pneumatic wastegate actuator, automatically stabilizes boost pressure and prevents overboost under variable load
- Precision dynamically balanced rotor assembly, strong low-speed torque, effectively reduce exhaust black smoke under heavy mining operation
- Oil-lubricated heavy-duty reinforced bearing housing, excellent heat dissipation, lower risk of oil carbonization and oil leakage failure
- Standard dual rectangular exhaust flange, direct bolt-on installation without exhaust manifold modification
Shipping & Packaging
Each turbocharger is pre-filled with anti-rust lubricant, air inlet/outlet sealed by plastic dust caps, wrapped with shockproof foam and packed into thick export cartons. Reinforced wooden cases are available for bulk orders. Tracking number will be provided once dispatched, support SF Express / YTO / ZTO / EMS delivery.
Taxes
Import duties, consumption tax and customs clearance fees are not included in unit price and freight. Buyers shall bear all relevant customs charges in accordance with local import regulations.
Warranty
Standard 6-month warranty for all turbochargers. Damage caused by improper installation, engine overload, insufficient lubrication or improper engine oil is not covered under warranty.
Related Engine Parts Available
We supply a complete range of aftermarket engine spare parts covering Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vol vo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB and more. Our product lineup includes turbochargers, overhaul gasket kits, pistons, water pumps, oil pumps, fuel injectors, crankshafts and other wear parts for excavators, trucks, tractors and generators.
FAQ (5 Selected Concise Versions)
Q1: What brands of engine spare parts do you supply?
A: We supply parts for mainstream machinery engine brands including Kubota, Cumm ins, CAT, Yanmar, Isuzu, Komatsu, Mitsubishi, Volv o, Deutz, Doosan, Scania, Hyundai, JCB.
Q2: Can this turbocharger directly replace original OEM parts?
A: Yes, all parts follow OEM dimensional standards, pass strict factory dynamic balance testing for direct bolt-on installation.
⚠️Important: This is wastegate HX60W turbo for Vol vo EC700 D16E engine, cannot interchange with non-wastegate HX60 model 4042659, confirm whether the original turbo has an actuator before ordering.
Q3: What is your product warranty period?
A: Standard 6-month warranty. Damage from improper use or installation is excluded.
Q4: What domestic delivery methods do you support?
A: We support SF Express, YTO, ZTO and EMS with real-time tracking service.
Q5: How to confirm the compatible turbo for your machine?
A: Provide engine model, OEM part number or clear photos of old turbo for accurate matching.
