Product Details

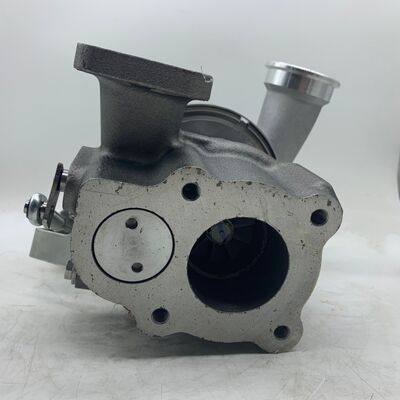

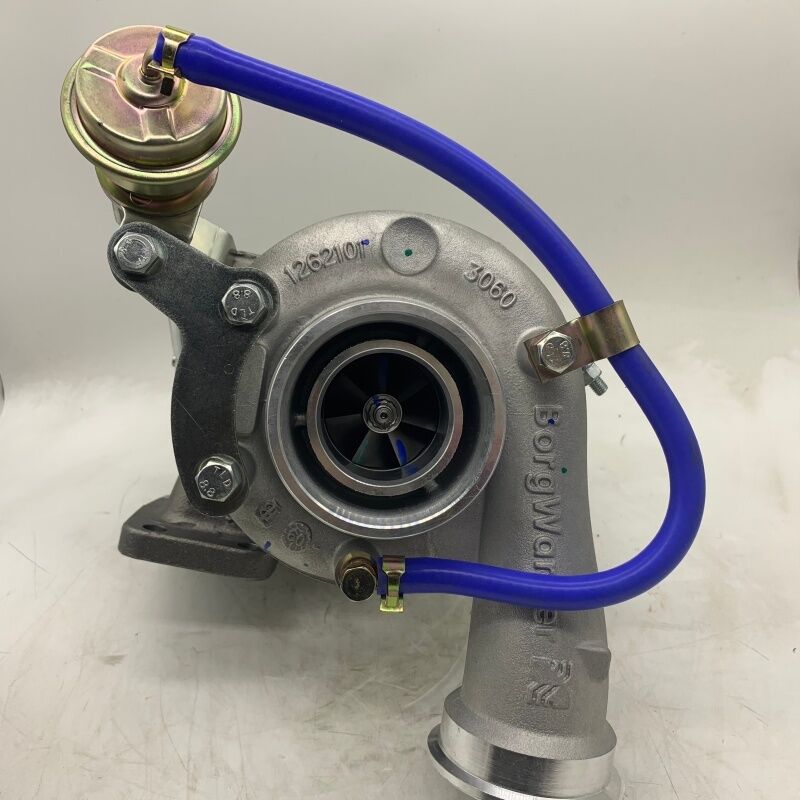

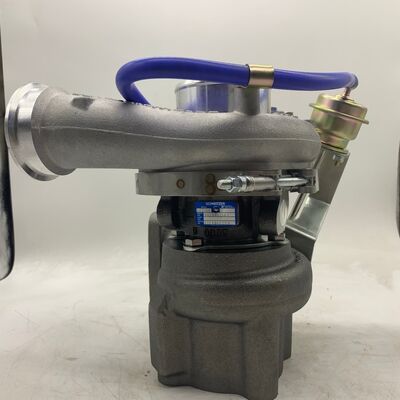

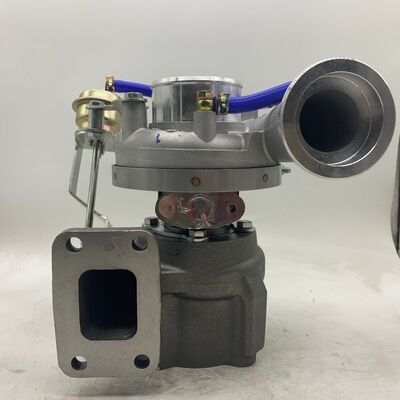

Product Name: S200G Turbocharger
Main OEM Part Number: 04294725 / 56209880017
Fit Engine: Vol vo D6E 6-cylinder Diesel Engine
Compatible Equipment: Vol vo EC210B Hydraulic Excavator
Application Scenarios
- Vol vo EC210B hydraulic excavators equipped with D6E engine
- Construction machinery powered by Vol vo D6E diesel engine
- Medium stationary industrial generator sets
Cross Reference Table
| OEM Part Number |
Turbo Spec |
Matching Equipment |
Interchangeable |
| 04294725 |
S200G Wastegate Turbo |
Vol vo EC210B / D6E engine |
Yes |
| VOE20515589 |
S200G Fixed Geometry Turbo |
EC210B D6D engine, no wastegate, not interchangeable |
No |
| VOE20515585 |
S200G Turbo |
Vol vo EC160B D6D engine, incompatible |
No |
| 49179-00451 |
TE06H Turbo |
Mitsubishi E200B 6D16 engine |
No |
Core Product Highlights
- High-temperature cast iron turbine housing, BorgWarner Schwitzer original design matched for Vol vo D6E engine
- External diaphragm wastegate actuator, automatically stabilizes boost pressure and prevents overboost
- Precision dynamically balanced rotor assembly, improves low-speed torque and reduces black smoke under heavy excavation load
- Oil-lubricated reinforced bearing housing, excellent heat resistance, effectively lower oil carbonization and leakage failure risk
- Standard exhaust flange size, direct bolt-on installation without manifold modification
Shipping & Packaging
Each turbocharger is pre-filled with anti-rust lubricant, air inlet/outlet sealed by plastic dust caps, wrapped with shockproof foam and packed into thick export cartons. Reinforced wooden cases are available for bulk orders. Tracking number will be provided once dispatched, support SF Express / YTO / ZTO / EMS delivery.
Taxes
Import duties, consumption tax and customs clearance fees are not included in unit price and freight. Buyers shall bear all relevant customs charges in accordance with local import regulations.
Warranty
Standard 6-month warranty for all turbochargers. Damage caused by improper installation, engine overload, insufficient lubrication or improper engine oil is not covered under warranty.
Related Engine Parts Available
We supply a complete range of aftermarket engine spare parts covering Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vol vo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB and more. Our product lineup includes turbochargers, overhaul gasket kits, pistons, water pumps, oil pumps, fuel injectors, crankshafts and other wear parts for excavators, trucks, tractors and generators.
FAQ (5 Selected Concise Versions)
Q1: What brands of engine spare parts do you supply?
A: We supply parts for mainstream machinery engine brands including Kubota, Cumm ins, CAT, Yanmar, Isuzu, Komatsu, Mitsubishi, Vol vo, Deutz, Doosan, Scania, Hyundai, JCB.
Q2: Can this turbocharger directly replace original OEM parts?
A: Yes, all parts follow OEM dimensional standards, pass strict factory dynamic balance testing for direct bolt-on installation. ⚠️Important: This wastegate S200G turbo fits Vol vo EC210B D6E engine, cannot be swapped with D6D non-wastegate turbo, confirm engine type and OEM number before ordering.
Q3: What is your product warranty period?
A: Standard 6-month warranty. Damage from improper use or installation is excluded.
Q4: What domestic delivery methods do you support?
A: We support SF Express, YTO, ZTO and EMS with real-time tracking service.
Q5: How to confirm the compatible turbo for your machine?
A: Provide engine model, OEM part number or clear photos of old turbo for accurate matching.
