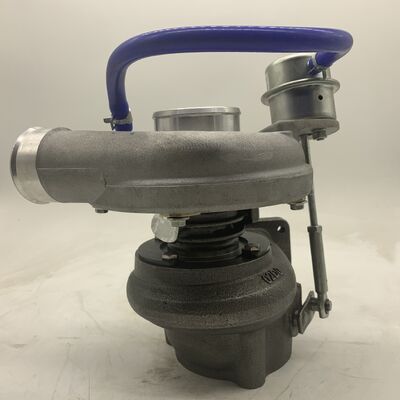

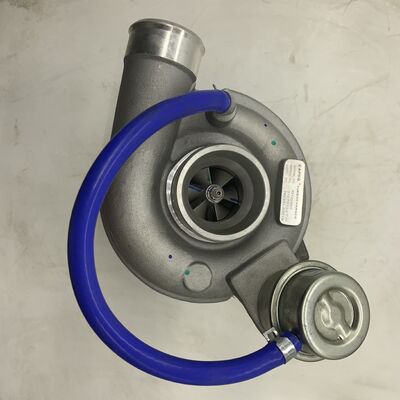

Turbocharger GT2256S 762931-5001S For Perkins 1104D-44TA Engine Construction Machinery

Product Name: GT2256S Turbocharger

Main OEM Part Number: 762931-5001S

Fit Engine: Perkins 1104D-44TA 4-cylinder Diesel Engine

Turbo Spec: A/R 0.52

1.   Perkins 1104D-44TA compact wheel loaders, mini hydraulic excavators
2.   Light construction equipment: road rollers, off-road forklifts with 1104 series power
3.   Stationary industrial diesel generator sets powered by Perkins 1104D engine

1.   Twin split volute high-temperature cast iron turbine housing (A/R 0.52), fast low-speed torque response for medium construction machinery

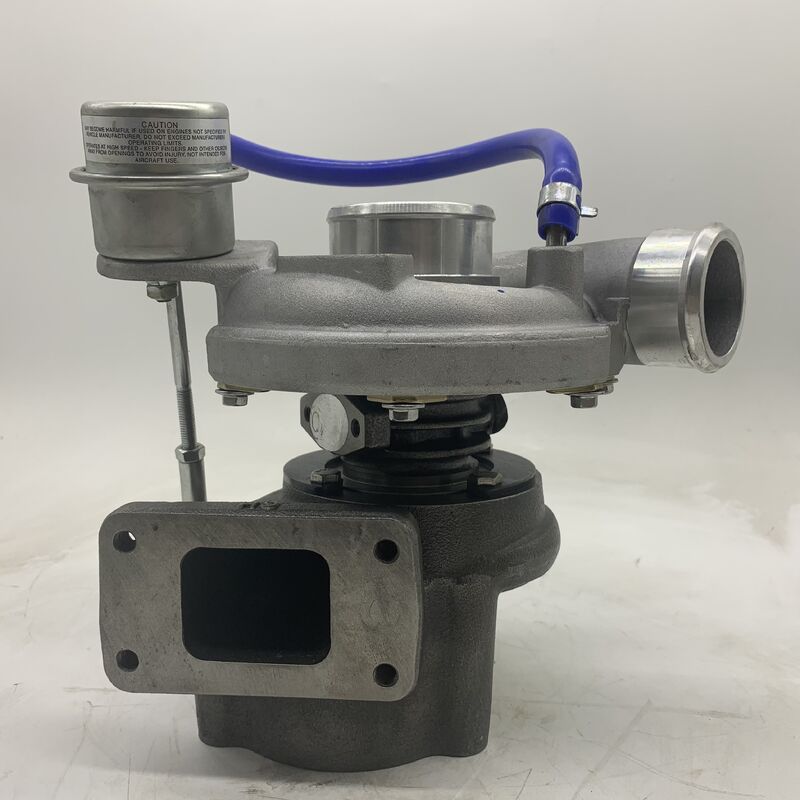

2.   External diaphragm wastegate with bright blue silicone control hose, automatically stabilizes boost pressure to avoid overboost
3.   Precision dynamically balanced rotor wheel, effectively eliminates turbo lag and black exhaust smoke under full load
4.   Heat fin cooling bearing housing, stable dual oil supply lubrication system, low oil leakage failure rate

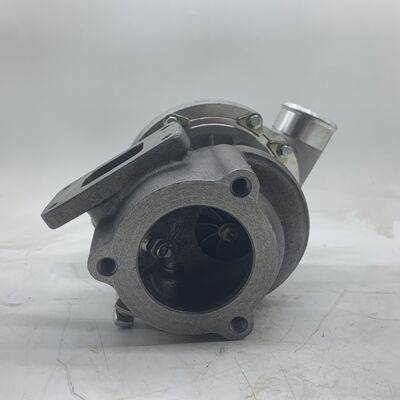

5.   Standard T4 single square exhaust flange, direct bolt-on installation without modifying exhaust manifold

Each turbocharger is pre-filled with anti-rust lubricant, air inlet/outlet sealed by plastic dust caps, wrapped with shockproof foam and packed into thick export cartons. Reinforced wooden cases are available for bulk orders. Tracking number will be provided once dispatched, support SF Express / YTO / ZTO / EMS delivery.

Import duties, consumption tax and customs clearance fees are not included in unit price and freight. Buyers shall bear all relevant customs charges in accordance with local import regulations.

Standard 6-month warranty for all turbochargers. Damage caused by improper installation, engine overload, insufficient lubrication or improper engine oil is not covered under warranty.

We supply a complete range of aftermarket engine spare parts covering major global brands: Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vol vo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB and more. Our product lineup includes turbochargers, overhaul gasket kits, pistons, water pumps, oil pumps, fuel injectors, crankshafts and other wear parts for excavators, trucks, tractors and generators.

A: We supply parts for mainstream machinery engine brands including Kubota, Cumm ins, CAT, Yanmar, Isuzu, Komatsu, Mitsubishi, Vol vo, Deutz, Doosan, Scania, Hyundai, JCB.

A: Yes, all parts follow OEM dimensional standards, pass strict factory dynamic balance testing for direct bolt-on installation.

A: Standard 6-month warranty. Damage from improper use or installation is excluded.

A: We support SF Express, YTO, ZTO and EMS with real-time tracking service.

A: Provide engine model, OEM part number or clear photos of old turbo for accurate matching.
