Product Details

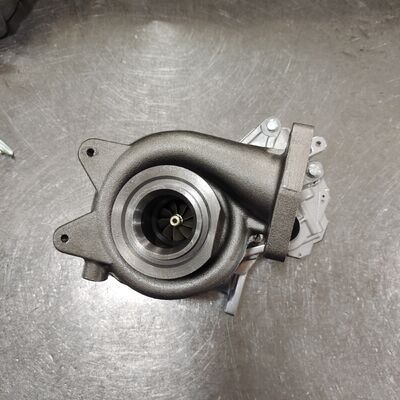

Product Name: CT16V VGT Turbocharger
Main OEM Part Number: 17201-11110
Fit Engine: Toyota 2GD-FTV 2.4L 4-cylinder Diesel Engine
Application Scenarios
- Toyota Hilux Revo 2.4 D-4D pickup trucks
- Toyota Fortuner 2GD-FTV SUV diesel vehicles
- Light commercial vehicles equipped with 2GD series power
Cross Reference Table
| OEM Part Number |
Turbo Spec |
Matching Engine & Equipment |
Interchangeable |
| 17201-11110 |
CT16V Electronic VGT |
Toyota 2GD-FTV Hilux/Fortuner |
Yes |
| 17201-11100 |
CT16V |
Early version, fully interchangeable |
Yes |
| 17201-OL040 |
CT16 |
1KD-FTV mechanical turbo, not interchangeable |
No |
| 1515A029 |
RHF4 |
Mitsubishi 4D56 engine |
No |
Core Product Highlights

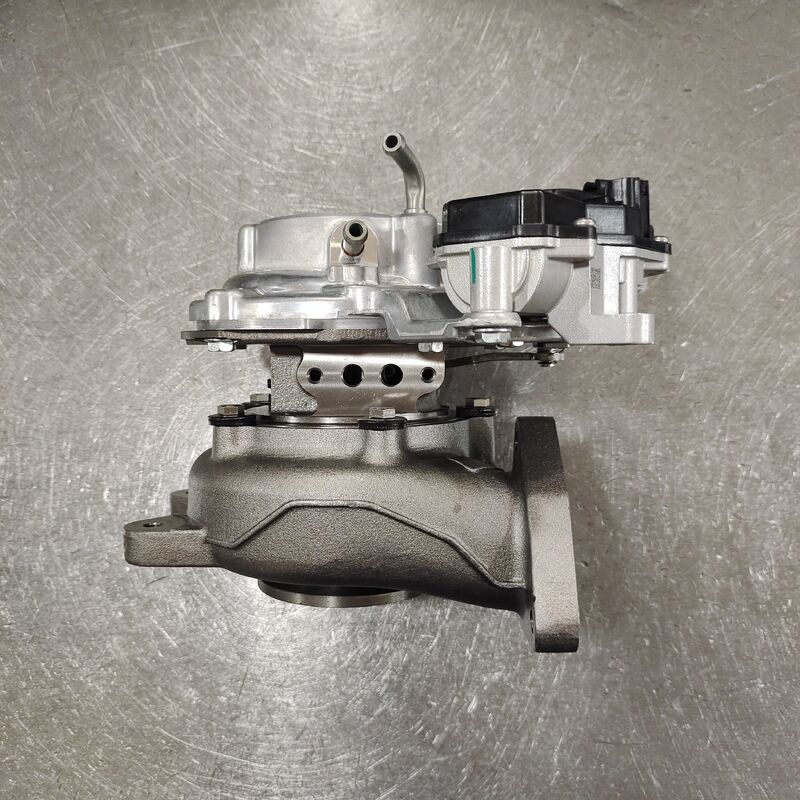

- Variable geometry twin volute high-temperature cast iron turbine housing, electronic VGT actuator for instant low-speed torque

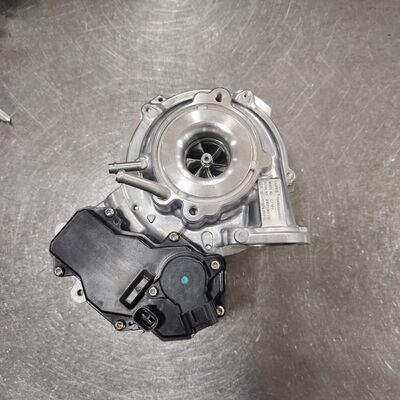

- Integrated black electronic control actuator with multi-pin plug, real-time adjust turbine blade angle to eliminate turbo lag
- Precision CNC balanced ceramic rotor assembly, low inertia, excellent acceleration response
- Water + oil dual cooling bearing system, stable temperature control, ultra-low oil leakage risk

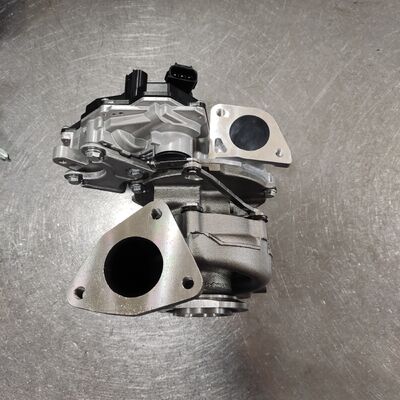

- Special triangular exhaust flange design, direct bolt-on installation without modifying exhaust manifold
Shipping & Packaging
Each turbocharger is pre-filled with anti-rust lubricant, air inlet/outlet sealed by plastic dust caps, wrapped with shockproof foam and packed into thick export cartons. Reinforced wooden cases are available for bulk orders. Tracking number will be provided once dispatched, support SF Express / YTO / ZTO / EMS delivery.
Taxes
Import duties, consumption tax and customs clearance fees are not included in unit price and freight. Buyers shall bear all relevant customs charges in accordance with local import regulations.
Warranty
Standard 6-month warranty for all turbochargers. Damage caused by improper installation, engine overload, insufficient lubrication or improper engine oil is not covered under warranty.
Related Engine Parts Available
We supply a complete range of aftermarket engine spare parts covering major global brands: Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vol vo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB and more. Our product lineup includes turbochargers, overhaul gasket kits, pistons, water pumps, oil pumps, fuel injectors, crankshafts and other wear parts for excavators, trucks, tractors and generators.
FAQ (5 Selected Concise Versions)
Q1: What brands of engine spare parts do you supply?
A: We supply parts for mainstream machinery engine brands including Kubota, Cumm ins, CAT, Yanmar, Isuzu, Komatsu, Mitsubishi, Vol vo, Deutz, Doosan, Scania, Hyundai, JCB.
Q2: Can this turbocharger directly replace original OEM parts?
A: Yes, all parts follow OEM dimensional standards, pass strict factory testing for direct bolt-on installation.
Q3: What is your product warranty period?
A: Standard 6-month warranty. Damage from improper use or installation is excluded.
Q4: What domestic delivery methods do you support?
A: We support SF Express, YTO, ZTO and EMS with real-time tracking service.
Q5: How to confirm the compatible turbo for your machine?
A: Provide engine model, OEM part number or clear photos of old turbo for accurate matching.
