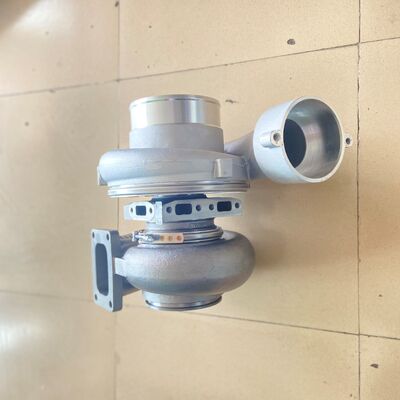

Large Image :  Turbocharger 155-5269 For CAT 3508 / 3406E Engine

Product Details:
Place of Origin: CHINA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: BOX
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 8000
Contact Now Chat Now

Turbocharger 155-5269 For CAT 3508 / 3406E Engine

Description
Highlight:

CAT 3508 Turbocharger

,

155-5269 Engine Turbocharger

,

Turbocharger 155-5269 For CAT 3508

Product Details

Product Name: S400 Turbocharger

Main OEM Part Number: 155-5269

Fit Engine: CAT 3406E / CAT 3508 V8 Diesel Engine

Turbo Spec: A/R.81 M1.2

Application Scenarios
  1. CAT 3406E heavy mining haul trucks, road tractors
  2. CAT 3508 large mining excavators, stationary power generator units
  3. Off-highway heavy construction machinery with 3406E / 3508 power
Cross Reference Table
OEM Part Number Turbo Model Matching Engine & Equipment Interchangeable
155-5269 S400 A/R.81 M1.2 CAT 3406E / 3508 mining machinery Yes
1555269 S400 Same casting, fully interchangeable Yes
7C7582 TV81 CAT 3406B engine, not interchangeable No
450-1420 GTB40 CAT C13 engine No
Core Product Highlights
  1. Single large volute high-temperature cast iron turbine housing (A/R 0.81), stable power output under long-cycle heavy mining load
  2. Oil-cooled heavy-duty full floating bearing assembly, excellent heat dissipation, low oil leakage failure rate
  3. Precision dynamically balanced turbine wheel & compressor wheel, eliminates turbo lag and reduces black smoke under full load
  4. Clamp split connection between compressor housing and center housing, easy disassembly for maintenance
  5. Standard square single exhaust flange, direct bolt-on installation without exhaust manifold modification
Shipping & Packaging

Each turbocharger is pre-filled with anti-rust lubricant, air inlet/outlet sealed by plastic dust caps, wrapped with shockproof foam and packed into thick export cartons. Reinforced wooden cases are available for bulk orders. Tracking number will be provided once dispatched, support SF Express / YTO / ZTO / EMS delivery.

Taxes

Import duties, consumption tax and customs clearance fees are not included in unit price and freight. Buyers shall bear all relevant customs charges in accordance with local import regulations.

Warranty

Standard 6-month warranty for all turbochargers. Damage caused by improper installation, engine overload, insufficient lubrication or improper engine oil is not covered under warranty.

Related Engine Parts Available

We supply a complete range of aftermarket engine spare parts covering major global brands: Kubota, Cumm ins, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi, Hino, Nissan, Vol vo, Deutz, Doosan, Daewoo, John Dee re, Scania, Hyundai, JCB and more. Our product lineup includes turbochargers, overhaul gasket kits, pistons, water pumps, oil pumps, fuel injectors, crankshafts and other wear parts for excavators, trucks, tractors and generators.

FAQ (5 Selected Concise Versions)
Q1: What brands of engine spare parts do you supply?

A: We supply parts for mainstream machinery engine brands including Kubota, Cumm ins, CAT, Yanmar, Isuzu, Komatsu, Mitsubishi, Vol vo, Deutz, Doosan, Scania, Hyundai, JCB.

Q2: Can this turbocharger directly replace original OEM parts?

A: Yes, all parts follow OEM dimensional standards, pass strict factory testing for direct bolt-on installation.

Q3: What is your product warranty period?

A: Standard 6-month warranty. Damage from improper use or installation is excluded.

Q4: What domestic delivery methods do you support?

A: We support SF Express, YTO, ZTO and EMS with real-time tracking service.

Q5: How to confirm the compatible turbo for your machine?

A: Provide engine model, OEM part number or clear photos of old turbo for accurate matching.
