49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine

49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine
49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine 49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine 49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine 49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine

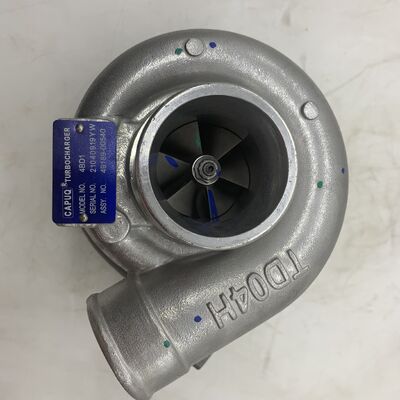

Large Image :  49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine

Product Details:
Place of Origin: China
Model Number: 4BD1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: BOX
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 8000
Contact Now Chat Now

49189-00540 Turbocharger TD04H 4BD1 For Isuzu Engine

Description
Highlight:

49189-00540 Isuzu Turbocharger

,

TD04H Isuzu Turbocharger

,

4BD1 Isuzu Turbocharger

Product Details

Product Name: Diesel Engine Turbocharger

Main Part Number: 49189-00540

Model Code: TD04H, 4BD1

Alternative OEM No: 21040919YW, 89-10803

Fit for Engine: Isuzu 4BD1 Diesel Engine

Fit Equipment: Isuzu Excavator, Truck, Loader, Agricultural Machinery

Applications
  • Construction Machinery: Isuzu EX120, EX150, SK120 excavators
  • Light & Medium Commercial Trucks with 4BD1 power
  • Agricultural wheel loaders, compact engineering equipment
  • Stationary industrial diesel generator sets equipped with 4BD1 engine
Compatible Matching Table
Brand Engine Model Matching Turbo Part Number
ISUZU 4BG1 49189-00520
Product Highlights
1. High Strength Cast Iron Turbine Housing

Turbine shell adopts high-temperature resistant ductile cast iron, excellent thermal fatigue resistance. Stable under long-time high exhaust temperature working conditions, no cracking, deformation under frequent load changes of construction machinery.

2. Precision Balanced Alloy Compressor Wheel

Aluminum compressor impeller undergoes ultra-precise dynamic balance calibration, high air intake efficiency. Effectively improve engine intake volume, boost low-speed torque, reduce black smoke during acceleration.

3. Full Floating Bearing & High Temperature Oil Seal

Adopts full floating double sliding bearing structure, matched with multi-layer high-temperature resistant fluorine rubber oil seals. Greatly reduce oil leakage risk, extend service life under heavy-load continuous operation.

4. 100% OEM Mounting Dimension Standard

All flange mounting holes, air inlet/outlet, exhaust interface fully consistent with original TD04H turbocharger. Direct bolt-on replacement without any modification, perfect fit Isuzu 4BD1 engine.

5. Optimized Power & Fuel Economy

Effectively solve engine insufficient power, slow acceleration, excessive fuel consumption and exhaust black smoke caused by old turbo failure. Restore original engine power output, reduce cylinder wear and maintenance cost.

Shipping

Multiple global shipping channels (air & sea freight) available. Each turbocharger is individually oil-sealed, packed with shockproof foam carton, complete inspection report and traceable tracking number for worldwide delivery.

Taxes

Import duties, local consumption taxes and extra customs handling fees are not included in quoted price and freight. Buyers shall bear all relevant fees according to local customs rules.

Product Advantage

This TD04H turbocharger is specially designed for Isuzu 4BD1 engine with part number 49189-00540, widely applied on Isuzu excavators and medium trucks. It features high-temperature cast iron housing, precision balanced compressor wheel and OEM-standard calibration. It is a core replacement spare part for engine overhaul, effectively shorten equipment downtime and lower long-term maintenance expenses.
